Display conditions (Screensaver, Schedule, Secondary Monitor, Split screen)

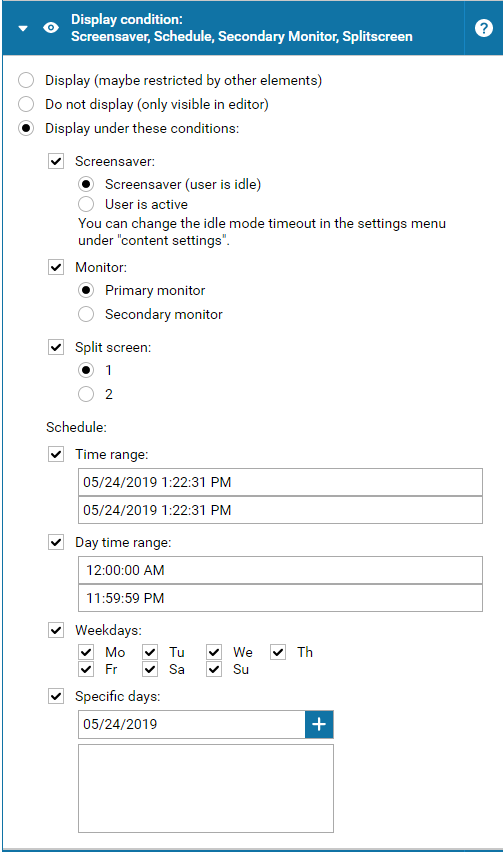

Under the tab Display conditions you can configure a specific time frame or an event (user active or idle) which defines whether an element is shown on the client machine. This option for example allows you to set up a sort of Schedule for your elements or pages. Furthermore, you can for example, use the display conditions to configure your own screensaver. In addition, you can specify the display conditions on which Monitor (Primary monitor or Secondary monitor) or in which Splitscreen an element or page is displayed.

There are three settings in the section Display conditions:

Display (maybe restricted by other elements): The element is always displayed if no other element with appropriate display conditions restricts the view.
Do not display (only visible in the editor): The element is only displayed in the editor and is not displayed in the preview or on the clients.
Display under these conditions: The element is displayed when the configured display conditions are met.

Please note:
The rank order of the display conditions basically works in the inspector from top to bottom, whereby elements, where no conditions are set, are subordinated! This means for two elements with the same display conditions in a layer the upper element is always displayed on the client. Display conditions are not transferred to higher levels. If a parent container or page is not displayed, the subordinated elements are not displayed.

1.1 Display under these conditions

The section Display under these conditions includes several options that can be combined with each other:

Screensaver
Monitor
Split screen
Schedule

1.1.1 Screensaver

In the section Screensaver following options can be configured:

Screensaver (User is idle)
User is active

In the Screensaver section, you can configure whether the display of specific elements or pages should be displayed depending on user interaction. In this way, you can for example display certain elements only when a user is active and a Sequence (slideshow) with images and videos in the idle mode.

Please note:
When using SiteCaster as the main application, you can change the idle time before activating the screensaver in the settings menu under Content settings. When using SiteCaster on a secondary monitor, in a screen split, or in a separate screen saver, the idle time before activating the screensaver is configured in the SiteKiosk configuration in the Screensaver section.

1.1.2 Monitor

The Monitor option allows you to specify whether an element or a page is only displayed on the first or second monitor.

Please note:
To display SiteCaster content on a secondary monitor, SiteKiosk has to be configured accordingly in the SiteKiosk configuration under Startpage & Browser.

1.1.3 Split screen

The Split screen option allows you to specify whether an element or a page is only displayed on the first or second Split screen.

Please note:
To combine the Chrome Browser together with SiteCaster content in on screen, SiteKiosk has to be configured accordingly in the SiteKiosk configuration under Startpage & Browser - Split screen.

1.1.4 Schedule

In the section Schedule, the following options can be configured and combined with each other:

Time range
Day time range
Weekdays
Specific days

Using options of the Schedule- Display under these conditions section allows to precisely define a Time range (display period down to the second) during which an element should be displayed. This option can come in handy for example when you want to replace an element with another one at a specific time and date. In that case you can simply set the start date of the second element to the end of the first element's time frame. A simple example would be to switch from wishing your customers happy holidays during the Christmas season to showing a "Happy New Year" message on January 1st. You can easily plan these things in advance and have the schedule take care of it automatically. As well the Time section lets you define Day time range, a starting time from which an element should be displayed each day and a stopping time when the element is hidden again. You can use this method, for example, to switch between content you want to show in the morning and other content you want to show in the afternoon and evening. Simply create both elements and set the first element to show between 0:00 and 12:00 and set the second element to show between 12:01 and 23:59. With the Weekdays and Specific days function you can also configure elements to appear on certain or specific days. With the possibility to combine all functions of the time section all conceivable display conditions can be configured.

Please note:
All Schedule options in the display conditions can be combined with each other. If you want to display only one element per display condition in a container, you should use the swap container.

1.1.5 Test of display conditions

To test if your timed and event controlled elements show up the way you want them to, you can use the Preview. You can set a specific time and date for the preview windows which will be used instead of the real time. So if you want to test if elements properly appear/disappear at a certain time and date, simply set the time of the preview to a couple of seconds before the time you want to test. In addition, the preview's menu bar includes a button Set users idle to simulate event-driven display conditions. The drop-down menus Monitor and Split screen allow you to simulate the display conditions concerning monitor and split screen.
